Car Camera

This product has been discontinued and removed from our shelves.

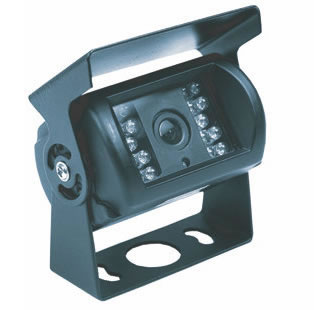

The wide angle CCTV camera is specially designed for use in cars, and buses. The D-VITEC car CCTV camera features auto white balance and comes with NTSC/PAL TV system, 1/3" SONY or SHARP CCD image sensor.

Technical Specifications of the Car Camera

Picture Car Camera Car Camera Car Camera Car Camera
Model Number DV-342C DV-340C DV-351C DV-361C
Image Sensor 1/3" SONY CCD 1/3" SHARP CCD
Picture Element 510(H) x 492(V) NTSC; 500(H) x 582(V) PAL
TV System NTSC /PAL
Scanning Frequency 15,734KHz(H), 59,94Hz(V); 15,625KHz(H), 50Hz(V)
Scanning System 2:1 interlace
Synchronization System Internal Sync
Resolution (Horizontal) 420TVL
Video Output 1Vpp 75ohm Composite
S/N Ratio More Than 48db (AGC-OFF)
Min. Illumination 0.5LUX 0LUX
Auto Electronic Shutter 1/60 ~ 1/100,000 sec. 1/50 ~ 1/100,000 sec.
White Balance AUTO
IR LED N.G 18PCS 8PCS
Lens BOARD LENS 2.97MM (120 DEGREE ANGLE)
Power Source DC 12V +- 10%
Power Consumption DC 12V 100MA DC 12V 180MA DC 12V 150MA
Ambient Temp (-10℃ ~+60℃) (-10℃ ~+60℃) (-10℃ ~+60℃) (-10℃ ~+60℃)
Dimensions(MM) F23*61MM F30*72MM 74.5(W)*71.5(H)MM
Weight 1.5KG 1.5KG 1.5KG 1.5KG
