DV-613VH3 3CCD Multi-view Dome Camera

Description
This DV-613VH3 3CCD multi-view dome camera comprises 3 image sensors and it is very applicable for mounting in the elevator, at entrance, exit and other important indoor places.

Features

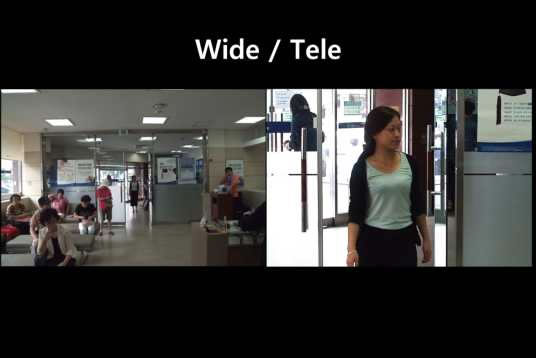

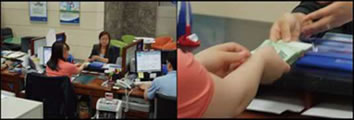

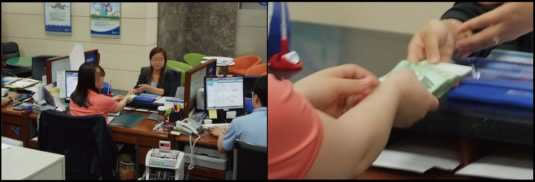

1. If configured with different lenses, this product can accomplish panoramic monitoring at 360°, picture in picture viewing, combined wide angle surveillance with partial shooting, etc. The image or video allows being viewed in different segmentation ways.
2. It supplies the distinct color image with 600 TV lines.
3. The CCD image sensor performs with high definition and low illumination, which is minimized to 0.01lux.
4. Equipped with the remote controller, this multi-view dome camera is easy and convenient for remote operation.

Parameters
Model DV-613VH3
System format PAL
Image sensor 1/3 inch Sony CCD
Active pixel 752(H)×582(V)
Resolution 600 TV lines
Min. illumination 0.01lux
Lens 2.8mm, 3.6mm, 6mm, 8mm, 12mm (optional)
Scanning mode Interlaced scanning
Synchronization system Internal synchronization
Output signal 1.0vp-p/75Ω
SN ratio 50dB
Shutter Automatic 1/50s~1/100000s
Color to black Automatic
Control mode Remote controller
Power supply DC12V
Power consumption 5w at maximum
Operating temperature -10ºC ~ +50ºC
Working humidity 90%RH at maximum
Dimension Ф127×90
Weight 520g

DV-6105H3 3CMOS Multi-view Dome Camera

This DV-6105H3 3CMOS multi-view dome camera is usually applied in the lift, at the gateway and other significant indoor places.

Features
1.The product is configured with 3 high sensibility CMOS sensors that are characterized by high definition and low illumination. The minimum illumination reaches 0.1lux.
2. It offers high resolution color image with 550 TV lines.
3. It is easy for users to operate the product remotely through the remote controller.
4. Our product can be collocated with diverse lenses. The image can be divided in different ways. Then this product will complete 360 degree panoramic viewing, picture in picture viewing, combination of wide angle and partial shooting and other viewing methods.

Parameter
Model DV-6105H3
System format PAL
Image sensor 1/3 inch high sensibility CMOS
Active pixel 768(H)×576(V)
Resolution 550 TV lines
Min. illumination 0.1lux
Lens 2.8mm, 3.6mm, 6mm, 8mm, 12mm (optional)
Scanning mode Interlaced scanning
Synchronization system Internal synchronization
Output signal 1.0vp-p/75Ω
SN ratio 50dB
Shutter Automatic 1/50s~1/100000s
Color to black Automatic
Control mode Remote controller
Power supply DC12V
Power consumption 5w at maximum
Operating temperature -10ºC ~ +50ºC
Working humidity 90%RH at maximum
Dimension Ф100×76mm
Weight 420g

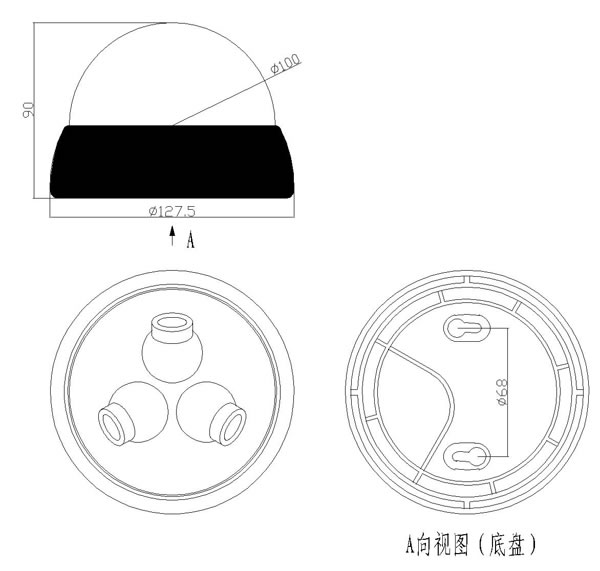

Dimensional Picture

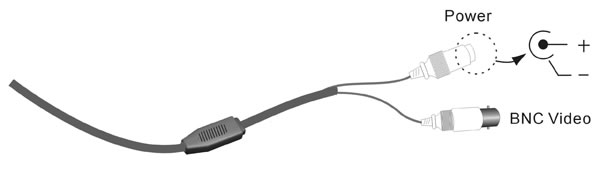

Interface Description
Accessories Description:

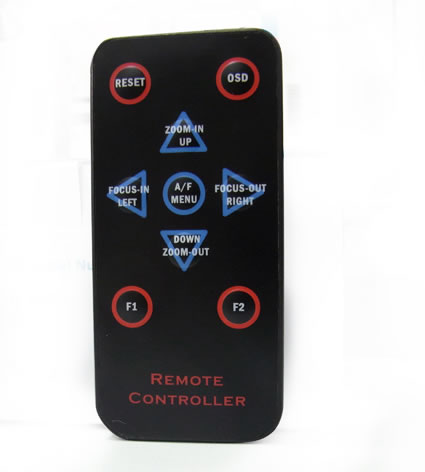

a wireless remote controller
