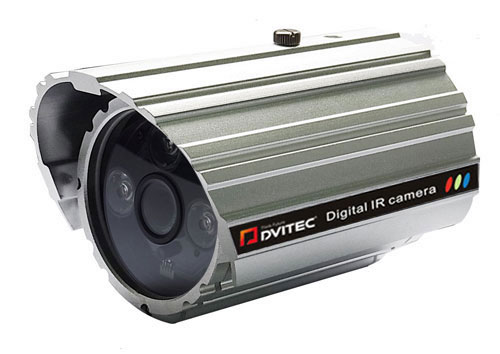

2 Mega Pixel SDI IR Camera

2 Mega Pixel SDI IR Camera

This product has been discontinued and removed from our shelves.

The 2 mega pixel SDI IR camera 1080P offers features of true day night (TDN), WDR, 2.0 megapixel, digital slow shutter (Sense-Up), 3D DNR (digital noise reduction), auto focus lens and privacy masking zone.

Technical Specifications of the 2 Mega Pixel SDI IR CAMERA 1080P
Model DV-HD9934A4
CMOS Type 2.0M Panasonic Pixel Color
Total Pixels 2000(H)x12411(V)
Min. Illumination 0.1 Lux (F1.6, 30IRE) - Color
0.01 Lux (F1.6, 30IRE) - TDN B/W
Resolution 1920x1080 at color 30fps
1920x1080 at B/W 30fps
Lens 3.5-16mm (Auto Focus )
Voltage DC 12V
Power Consumption DC: Max 2.2W
Shutter Speed 1/30s-1/25s
S/N Ratio 50dB or more (AGC off)
Sync System Internal
Operation Temp. -10C~ +50C
Storage Temp. -20C ~+70C
Operation Humidity Under 90%
Main Data Out HD-SDI
Sub Data Out CVBS Analog
Speed 74.25Mhz

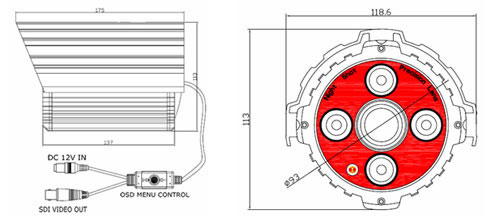

Dimension F113*157mm
