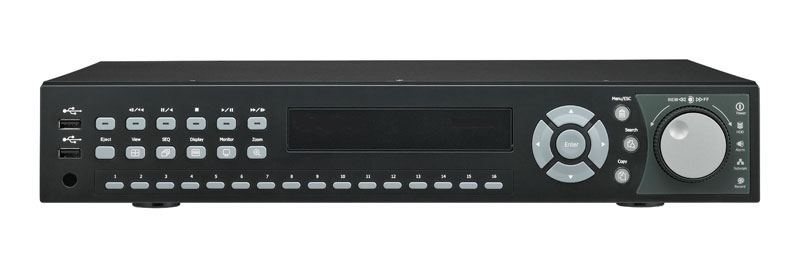

SDI-HD DVR, Digital Video Recorder

SDI-HD DVR, Digital Video Recorder

This product has been discontinued and removed from our shelves.

Technical Specifications of the SDI-HD DVR, Digital Video Recorder
Item Number DV-HVR02H14 DV-HVR04H04
HD-CCTV Camera Inputs 2 BNC SMPTE292m compliant 4 BNC SMPTE292m compliant
Analog Camera Inputs 14 BNC 4 BNC
Looping Analog Camera Outputs 14 BNC 4 BNC
Compression Format H.264
Dual Streaming Yes (Configurable)
HD Recording Rate/Resolution 1080p 30fps NTSC/25ps PAL 60fps NTSC/50ps PAL
Choose one resolution for both channels 720p 60fps NTSC/50ps PAL 120fps NTSC/100ps PAL
Analog Recording Rate/Resolution D1 420fps NTSC/350ps PAL 120fps NTSC/100ps PAL
Resolution and rate can be set independently per camera up to the total D1 recording capacity
HD Playback Rate/Resolution 1080p Up to 30fps NTSC/25fps PAL Up to 60fps NTSC/50fps PAL
720p Up to 60fps NTSC/50fps PAL Up to 120fps NTSC/100fps PAL
Analog Playback Rate/Resolution D1 Up to 420fps NTSC/350fps PAL Up to 120fps NTSC/100fps PA
Mobile View Live view on PDA or Smart Phones (MobileFocus FREE app for iPhone® and Android™) plus various web browsers
Pentaplex Operation Simultaneous Live, Recording, Playback, Archive and Remote Viewing
Main Monitor Outputs 1080p HDMI (socket Type A 19 pin female) and
(Simultaneous Display) VGA 1920 x 1080 @ 60 Hz (D-Sub socket 15 pin female)
Audio Inputs 16 Inputs (RCA, line level) 8 Inputs (RCA, line level)
Audio Outputs 2 Outputs (RCA, line level)
Recording Modes Manual, Schedule and Event
Playback Search Date/Time, Event, Text, Smart, Snapshot
Alarm Inputs 16 8
Alarm Outputs 4 Alarm Outputs – Form “C” rated at 30VDC, 1A
Video Pause Yes
Video Loss Detection Yes
Motion Detection Yes
Event Log Yes
Watch Dog Timer Yes
Internal HDD Support 4 Internal HDD (up to 8Tb max at time of printing)
External HDD Support 1 eSATA
DVD Drive DVD RW Built In
User Interface Color GUI (Graphical User Interface)
OS Embedded Linux
Network/Protocol Gigabit Ethernet; TCP-IP/DHCP/PPPoE/DDNS/UDP/SMTP/SSL/HTTP/NTP/ICMP/ARP
Control PTZ via OSD Local and via web interface
USB 2 Front Panel USB 2.0 port
Schedule Setting Support Express and Advanced Schedule Setting
User Access 3 Levels of User Access Support
RS-232 9-pin D-Sub socket (male)
RS-485 1 RS485 (2 RJ45 connector)
Power Source 100VAC~240VAC
Power Consumption 110W max. with 4 x HDD
Dimensions (L x W x H) 423 x 430 x 79.5 mm/16.6" x 16.9" x 3.2"
Temperature 0℃~40℃/32°F~104°F (20~80% humidity)
Certificates CE, FCC
Supported PTZ Protocols Pelco D, Pelco P, Samsung, Transparent
