3DNR CCTV Camera

This product has been discontinued and removed from our shelves.

Features
1. The utilization of advanced D-WDR (Digital Wide Dynamic Range) technology enables the 3DNR CCTV camera to give clear images even when the scene is strongly backlit.
2. The 3DNR CCTV camera has selectable sensitivity indoor and outdoor.
3. The combination of a Sony Super HAD CCD image sensor and 3DNR DSP results in an excellent resolution of 600TV lines.
4. The 3DNR CCTV camera features OSD-On Screen Display menu with multi-language support.
5. Privacy Masking-8 zones, Sens-Up- x 256, Digital Zoom - x255

Technical Specifications of 3DNR CCTV Camera

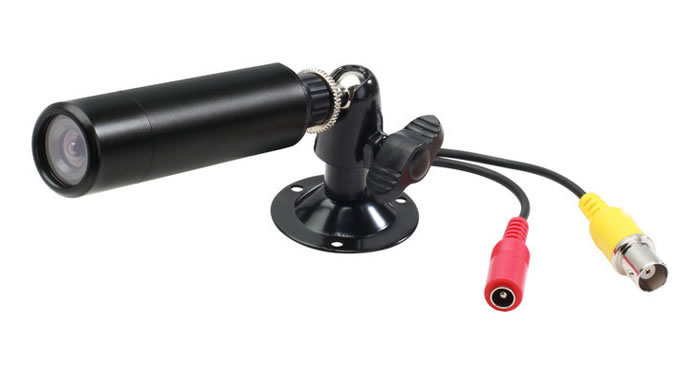

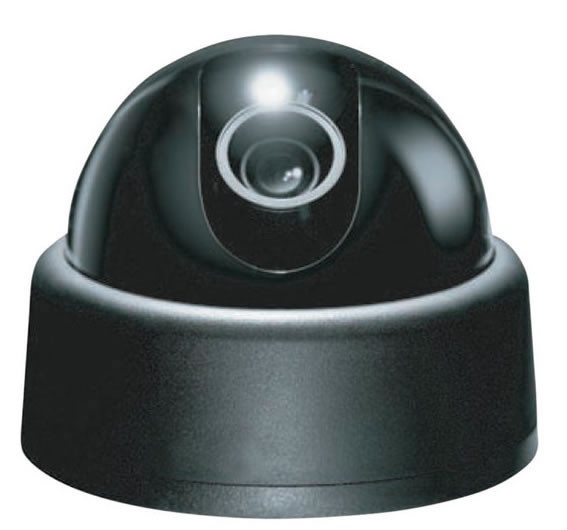

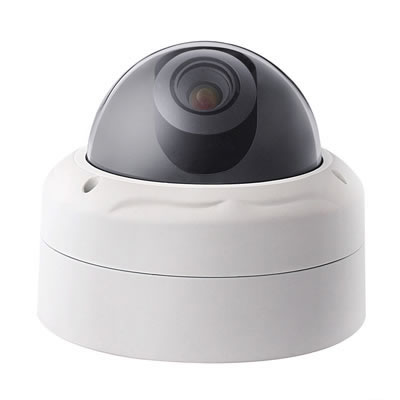

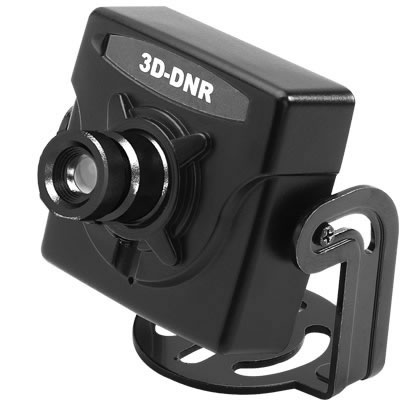

Picture 3DNR CCTV Camera 3DNR CCTV Camera 3DNR CCTV Camera 3DNR CCTV Camera 3DNR CCTV Camera 3DNR CCTV Camera 3DNR CCTV Camera
Model Number DV-D3125CDNHP4 DV-D3035CDNH DV-D2155CDNH DV-D4550CDNH DV-D680CDNH DV-D8410CDNH DV-D8610CDNH
Image Sensor 1/3" SONY SUPER HAD ⅡCCD
Picture Element 768(H) X 494(V) NTSC; 752(H) X 582(V) PAL
TV System NTSC /PAL
Scanning Frequency 15,734KHz(H), 59,94Hz(V) ; 15,625KHz(H), 50Hz(V)
Scanning System 2:1 interlace
Synchronization System Internal Sync
Resolution (Horizontal) 600TV Lines 580TVLINES 580TVLINES 580TVLINES 600TVLINES 600TVLINES 600TVLINES
Video Output 1Vpp 75ohm Composite
S/N Ratio More Than 50db (AGC-OFF)
Min. Illumination 0.0001Lux (20 IRE) 0 LUX (IR ON)
Auto Electronic Shutter 1/60 ~ 1/100,000 sec. 1/50 ~ 1/100,000 sec. ADJUSTABLE
Auto White Balance ATW/AWC/Manual Selectable
DAY & NIGHT Color/BW/Auto Selectable
Lens 3.7/2.5MM 2.97/3.6/6MM 2.97/3.6/6/8MM CS mount 2.8-11MM AUTO IRIS 2.8-11MM AUTO IRIS 2.8-11MM AUTO IRIS
Motion Detection Off/On (Area / Sensitivity)
Privacy Zone Off/On (AREA SELECTABLE)
OSD Language Multi
BLC ON-OFF Selectable (Factory Setting)
Power Source DC 12V +- 10%
Power Consumption DC 12V 120MA DC 12V 150MA DC 12V 150MA DC 12V 300MA DC 12V 250MA DC 12V 300MA DC 12V 500MA
Ambient Temp (-10℃ ~+50℃) (-10℃ ~+50℃) (-10℃ ~+50℃) (-10℃ ~+50℃) (-10℃ ~+50℃) (-10℃ ~+50℃) (-10℃~+50℃)
Dimensions(MM) 25*25MM 35*35MM F21MM 63(W)*65(H)*135(L) F120*100 F135*125 F125*105
Weight 0.25KG 0.25KG 0.3KG 0.7KG 0.5KG 1.3KG 1.3KG
