4/ 8CH SDI DVR / 16 CH SDI DVR

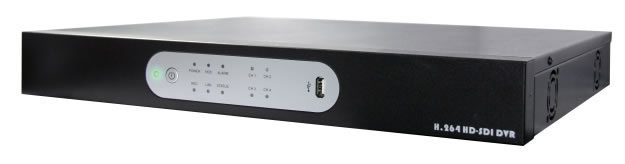

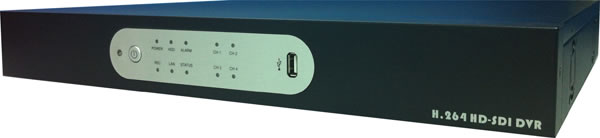

4 Channel 1080P 30 HD-SDI Digital Video Recorder

4/ 8CH SDI DVR / 16 CH SDI DVR
Feedback Form

Key Features
1. This 4 channel 1080P30 HD-SDI digital video recorder is configured with the dual-core CPU that demonstrates the perfect and leading performance in recording, playback and networking.
2. It allows 1080P30 real-time recording and simultaneous playback at real time through four channels.
3. Working with dual streaming video, this product can accomplish the remote access to Web, CMS, Mobile App like Android and IOS.
4. It also achieves easy archive through USB port, CD/DVD-RW or network.
5. This HD-SDI DVR offers search control by date or time and event.

Technical Specification
System
Operating system Embedded Linux
Operations Live, recording, playback, backup and remote access
Control mode USB mouse, IR remote control, Webpage
Video
Compression 4×1080p30 H.264 HP/MP/BP (with dual streams)
Audio
Input 4 × RCA
Output 1 × RCA
2-way Audio Support
Display
Display mode Full screen/Multi-screen/PIP/Sequence
Output 1×HDMI(1920×1080p60),1×VGA(up to 1920×1080, 60Hz)
Sequence Support
OSD GUI
Recording
Recording mode Continuous, scheduled, alarm, motion
Recording capability Up to120 fps at Full HD(1920×1080)
Prerecording 5 seconds
Post recording 300 or above seconds
Playback and Backup
Display mode Full screen/Multi-screen
Playback control Play/Pause/Step/Fast forward/Rewind/Fast rewind
Search control By date/time, alarm search
Output Through USB/Webpage
Mobile viewing on smart phone/ tablet PC Yes, IOS, Android
Internal storage 2×HDD, 1×DVD(optional)
External storage e-SATA×1
Network
Support protocol TCP/IP, SMTP, DHCP, DDNS, PPPoE, UDP, SSL, RTP, RTSP, NTP
Ethernet 1×10/100/1000Mbps
Input/Output
USB 2 (1 for mouse control and 1 for backup)
Alarm 4 alarm in/ 1 alarm out
RS485/RS422 data communication 1, Support Pelco D, Pelco P, Samsung and Transparent
Security
Watermark Yes
User privilege 3 Levels of user access support
Environmental conditions
Power 12VDC input
Temperature 0℃~ 40℃
Weight 2.5kg

Note: Specifications are subject to change without any notice.

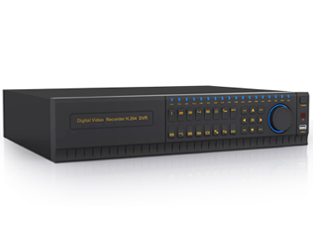

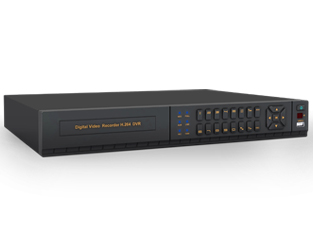

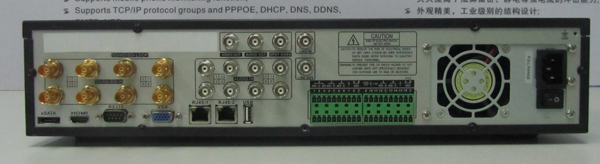

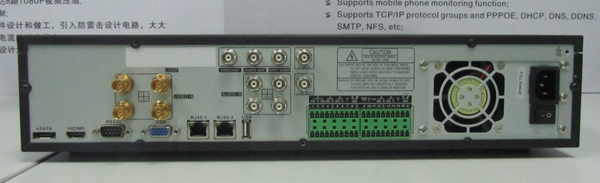

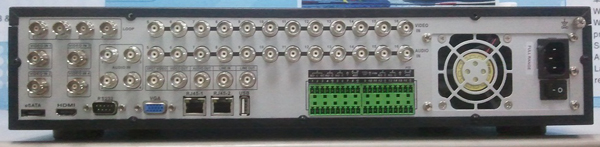

8/16 Channel 1080P 30FPS HD-SDI DVR

Technical Parameters of DV-HVR08H/DV-HVR16H
Hardware Specification
CPU ARM Cortex A9 dual core, 930MHz
Memory DDR3 1GB(Standard)
Internal storage 8×SATA pull-out HDD port, support 2×eSATA
Ethernet port 2×10/100/1000 Mbps
Video input/output Input: 8/16 channel HD-SDI input
Output:1×HDMI (1920x1080p60), 1×VGA (1920×1080, 60Hz)
Loop out: 8 /16 (option)
Audio input/output 8/16 CH input, 1CH Output( support 2-way Audio)
USB port 4 USB 2.0 ports
RS-485 Pelco D, Pelco P, Samsung, Transparent
Alarm in/out 8/16 Channel alarm in, 2/4 Channel alarm out
Control Mode USB mouse, IR remote control, Webpage, clients management server
Power AC 220V
Weight (without HDD) Net weight 6kg
Dimension 438mm(W) ×400mm(L) ×89mm(H)
Working temperature/humidity 0℃~40℃, 20~80%
Software specification
Resolution Max.1080p 30fps
Compression H.264 HP/MP/BP (with dual streams)
Video setting Resolution, quality, frame rate
Dual streaming Support
Display mode Full screen/Multi-screen/PIP/ circle
Recording mode Continuous, scheduled, alarm, motion
Recording capability Up to 240 frame full HD(1920×1080)
Prerecording 5 seconds
Post recording 300 seconds or above
Network transmission Support 1080P
Playback 8/16 Channel real-time playback, 4 Channel 1080P real-time playback
Digital zoom Available
Water mark Available
Record search Date/time/alarm
Data backup Through USB/Web, support AVI format
Mobile viewing on smart phone/tablet PC Support IOS, Android, etc.
Network
Support protocol TCP/IP, SMTP, DHCP, DDNS, PPPoE, UDP, SSL, RTP, RTSP, NTP
Operating system Embedded Linux
OSD GUI
ModelDV-DVR9904MH-RDV-DVR9908MH-RDV-DVR9908MH-RDV-DVR9104NH-R
SystemUser InterfaceGraphic User Interface (OSD)
Operating SystemEmbedded Linux
Operation ModePreview, record, playback, backup, network
Password SecurityMulti-level user management
A/V InputVideo input4 CH SDI Connector8 CH SDI Connector4ch SDI+12ch D1,BNC, 1.0p-p, 75Ω, 4 in, SDI
Audio input4 CH BNC Connector8 CH BNC Connector16ch, RCA, 2.0Vp-p, 600kΩ4 out, BNC
A/V OutputHDMI output720P, 1080P, 1080I
1024X768, 1280X1024, 1366X768, 1440X900
VGA output
Display1/4 optional1/4 /9 optional1/4 /9/16 optional1 / 4 optional
Video standardPAL/NTSC
LoopNO
CVBS main output1CH, BNC connector
Spot output1CH, BNC connector
Audio output1CH, BNC connector
A/V encoding parametersVideo compressionH.264
Display frame ratePAL: 100 fps (4 x 25 fps).
NTSC: 120 fps(4 x 30 fps)
PAL: 200 fps (8 x25fps).
NTSC: 240 fps(8 x 30 fps)
PAL: 400fps (16x25 fps). NTSC: 480fps (16 x 30 fps) PAL: 100fps (4 x 25fps).
NTSC:120fps (4 x 30fps)
1080P
Recording frame ratePAL: 100 fps (4 x 25 fps).
NTSC:120 fps(4 x 30fps)
PAL: 200 fps (8 x 25 fps)
NTSC:240 fps(8 x 30fps)
PAL: 400fps (16 x 25 fps)
NTSC:480 fps(16x 30 fps)
PAL: 100fps (4 x 25fps).
NTSC:120fps (4 x 30fps)
1080P
Video encoding resolutionPAL: D1(704X576)/HD1(704X288)/CIF(352X288)/1080P(1920x1080)/720P(1280X720)
NTSC: D1(704X480)/HD1(704X240)/CIF(352X240)/1080P(1920x1080)/720P(1280X720)
Video frame ratePAL: 1-25FPS NTSC:1-30FPS
Video bit rate720P:1536kbps-3072kbps, 1080P: 4608-6144kbps, D1: 768-1536Kbps, HD1: 512-1280kpbs, CIF: 384-768kbps, QCIF:192-384kbps
Stream TypeVideo & Audio/Video
Audio compressionADPCM
Recording modeAlways/Schedule/Alarm recording/Motion detection recording
Video searchTime/Channel/Event
Audio bit rate8-32kbps
Dual-streamSupports
Mobile phone MonitorSupports Android phone / iPhone / iPad
Recording resolution4CH 1080P Recording + 1 CH 1080P realtime Playback8 CH 1080P Recording + 1 CH 1080P realtime Playback4ch SDI(1080P)+12ch D1 Playback: 4ch D1/1ch 100P4CH 1080P Recording & 4 CH Playback
HDDType8 pieces SATA2 piece SATA
Maximum capacity3TB for each SATA connector
External connectorsVoice talkSupport, 1CH BNC line in/1CH BNC line out.
Record modeAudio & Video recording simultaneously
Remote controlSupports
Mouse controlSupports
Network protocolSupports IE/PPPoE/DDNS
Domain name serverSupport 88110, 3322, DynDns, No-IP, ChangeIP, dnsExit domain name server as default value.
Network 2 RJ45 10M/100M1 RJ45 10M / 100M / 1000M
Serial port2 RS-485 serial port1RS-485 serial port
RS-232 serial port No
E-SATA ConnectorSupports
USB Connector2 USB 2.0
Firmware updateSupport USB update/Network update
Alarm input16 in
Alarm output4 out
OthersPower supplyATX12V@5A
Power (without HDD)≤70 W≤15W
Operation Temperature-10℃--+55℃
Operation Humidity10%--90%
ChassisStandard 2UStandalone 1.1U
Dimension435mm(W)×440mm(D)×90mm(H) 321mm(W)×405mm(l)×64mm(H)
Weight (without HDD)≤6Kg ≤3Kg
