Box Camera

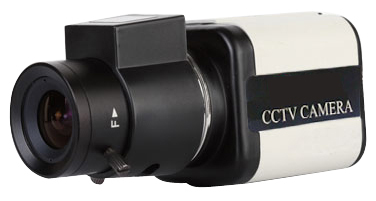

The D-VITEC box security camera comes in a wide range of models, styles and specifications to suit every customer's requirements. It uses a 1/3" SONY CCD image sensor, NTSC /PAL TV system, and internal synchronization system.

Technical Specifications of the Box Camera

Picture Box Camera Box Camera Box Camera Box Camera
Model Number DV-445EH DV-445VH DV-440EH DV-440VH DV-446GH DV-446PH DV-468GH DV-468PH
Image Sensor 1/3" SONY CCD
Picture Element 976(H) x 582(V) NTSC;
752(H) x 582(V) PAL 		752(H) x 582(V) NTSC;
752(H) x 582(V) PAL 		976(H) x 582(V) NTSC;
752(H) x 582(V) PAL 		752(H) x 582(V) NTSC;
752(H) x 582(V) PAL 		976(H) x 582(V) NTSC;
752(H) x 582(V) PAL
TV System NTSC /PAL
Scanning Frequency 15,625KHz(H), 50Hz(V)
Scanning System 2:1 interlace
Synchronization System Internal Sync
Resolution (Horizontal) 700TVL 600TVL 700TVL 600TVL 700TVL 700TVL 700TVL 700TVL
Video Output 1Vpp, 75Ω Composite
S/N Ratio More Than 50db (AGC-OFF)
Min. Illumination 0.01 Lux
Auto Electronic Shutter 1/60 ~ 1/100,000 sec. 1/50 ~ 1/100,000 sec ADJUSTABLE 1/60 ~ 1/100,000 sec.
1/50 ~ 1/100,000 sec. 		　 1/60 ~ 1/100,000 sec.
1/50 ~ 1/100,000 sec.
White Balance Auto
Lens CS MOUNT WITHOUT LENS
Power Source DC12V ± 5%
Power Consumption 1.5W (Max)
Ambient temp (-10°C ~+50°C)
Dimensions(MM) 46(W)*48(H)*56.8(L) 40(W)*43(H)*52(L) 46(W)*48(H)*76(L) 68(W)*63(H)*135(L)
Weight 　 　 　 　 0.4KG 　 　
