Mini Square Camera

The D-VITEC mini square CCTV camera is ideally suited for hidden use in devices with limited space, such as ATMs, vehicles, etc. It comes with an internal synchronization system and a 1/3" SONY CCD image sensor.

Technical Specifications of Mini Square Camera

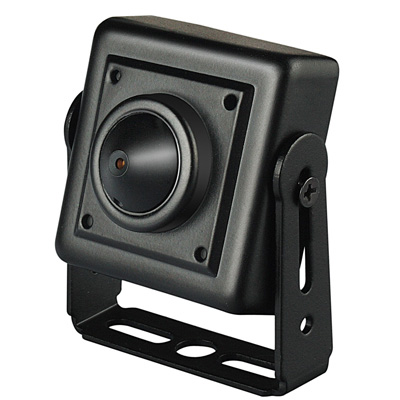

PictureMini Square CameraMini Square CameraMini Square CameraMini Square CameraMini Square Camera
Model numberDV-325GHPDV-325NHPDV-325VHPDV-325DHPDV-3125CV(P4)
Image Sensor1/3" SONY CCD
Picture Element976(H) X 582(V) 976(H) X 582(V) 752(H) X 582(V)752(H) X 582(V)752(H) X 582(V)
TV SystemNTSC /PAL
Scanning Frequency15,734KHz(H), 59.94Hz(V) ; 15,625KHz(H), 50Hz(V)
Scanning System2:1 interlace
Synchronization SystemInternal Sync
Resolution (Horizontal)650TVL650TVL600TVL600TVL600TVL
OSD MenuSupport
Video Output1Vpp, 75Ω Composite
S/N Ratio> 50db (AGC-OFF)
Min. Illumination0.05Lux, F1.20.001Lux, F1.20.01Lux, F1.20.001Lux, F1.20.01Lux, F1.2
Auto Electronic Shutter1/60 ~ 1/100,000 sec. 1/50 ~ 1/100,000 sec.
White BalanceAUTO 2500°K~10000°K
DAY & NIGHTSupport
Gamma0.45
LensPinhole 3.7/2.5mmBoard Lens 3.6mm;
Pinhole 3.7/2.5mm
Gain ControlAuto
Back Light CompensationOn/Off
Wide Dynamic RangeWDR/D-WDRD-WDR
Digital Noise Reduction3D-DNR2D-DNR2D-DNR3D-DNR2D-DNR
Power ConsumptionDC12V, 1W(MAX)
Operating temperature(-10°C ~+50°C)
Operating Humidity　　< 90%RH　　
Dimensions(MM)25*25mm
WeightApprox 130g

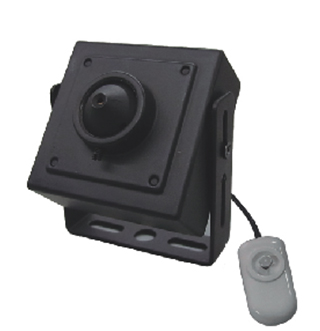

PictureMini Square CameraMini Square CameraMini Square CameraMini Square CameraMini Square CameraMini Square Camera
Model NumberDV-330PH/
DV-330PHP		DV-330GH/
DV-330GHP		DV-330EH/
DV-330EHP		DV-330VH/
DV-330VHP		DV-330DH/
DV-330DHP		DV-3130C/
DV-3130CP4
Image Sensor1/3" SONY CCD
Picture ElementPAL:976(H) X 582(V) ;
NTSC:976(H) X 494(V) 		PAL:976(H) X 582(V) ;
NTSC:976(H) X 494(V) 		PAL:976(H) X 582(V) ;
NTSC:976(H) X 494(V) 		PAL:752(H) X 582(V);
NTSC:768(H) X 494(V)		PAL:752(H) X 582(V);
NTSC:768(H) X 494(V)		752(H) X 582(V)
TV SystemNTSC /PAL
Scanning Frequency15,734KHz(H), 59.94Hz(V) ; 15,625KHz(H), 50Hz(V)
Scanning System2:1 interlace
Synchronization SystemInternal Sync
Resolution (Horizontal)650TVL650TVL650TVL600TVL600TVL420TVL
OSD MenuSupportN.A
Video Output1Vpp, 75Ω Composite
S/N Ratio> 50db (AGC-OFF)
Min. IlluminationColor: 0.1Lux(50IRE)
B/W: 0.08Lux(50IRE)		0.05Lux, F1.20.001Lux, F1.20.01Lux, F1.20.001Lux, F1.20.5Lux, F1.2
Auto Electronic Shutter1/60 ~ 1/100,000 sec. 1/50 ~ 1/100,000 sec.
White BalanceAUTO 1800°K~10500°KAUTO 2500°K~10000°K
DAY & NIGHTSupport
Gamma0.45
LensBoard lens 3.6mm; Pinhole 3.7/2.5mmBoard Lens 3.6mm;
Pinhole 3.7/2.5mm
Gain ControlLevel SettingAuto
Back Light CompensationOn/Off
Wide Dynamic RangeWDRWDR/D-WDRD-WDRD-WDRD-WDRN.A
Digital Noise Reduction2D-DNR/3D-DNR3D-DNR2D-DNR2D-DNR3D-DNRN.A
Power ConsumptionDC12V, 1W(MAX)
Operating Temperature(-10°C ~+50°C)
Operating Humidity< 90%RH
Dimensions(MM)30*30mm
WeightApprox 150g

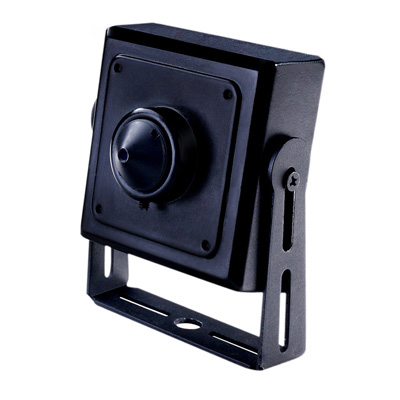

PictureMini Square CameraMini Square CameraMini Square CameraMini Square Camera
Model NumberDV-335GH/
DV-335GHP		DV-335VH/
DV-335VHP		DV-335DHPDV-3034CHDN/
DV-3034CHDNP4
Image Sensor1/3" SONY CCD
Picture ElementPAL:976(H) X 582(V) ;
NTSC:976(H) X 494(V) 		PAL:752(H) X 582(V);
NTSC:768(H) X 494(V)		PAL:752(H) X 582(V);
NTSC:768(H) X 494(V)		752(H) X 582(V)
TV SystemNTSC /PAL
Scanning FrequencyNTSC: 15,734KHz(H), 59.94Hz(V) ; PAL: 15,625KHz(H), 50Hz(V)
Scanning System2:1 interlace
Synchronization SystemInternal Sync
Resolution (Horizontal)650TVL600TVL600TVL600TVL
OSD MenuSupport
Video Output1Vpp, 75Ω Composite
S/N Ratio> 50db (AGC-OFF)
Min. Illumination 0.05Lux, F1.20.01Lux, F1.20.001Lux, F1.20.4Lux(50IRE), F1.2
Auto Electronic Shutter1/60 ~ 1/100,000 sec. 1/50 ~ 1/100,000 sec.
White BalanceAUTO 2500°K~10000°K
DAY & NIGHTSupport
Gamma0.45
LensBoard lens 3.6mm; Pinhole 3.7/2.5mmBoard Lens 3.6mm;
Pinhole 3.7/2.5mm
Gain ControlAuto
Back Light CompensationOn/Off
Wide Dynamic RangeWDR/D-WDRD-WDRD-WDRWDR
Digital Noise Reduction3D-DNR2D-DNR3D-DNR3D-DNR
Power ConsumptionDC12V, 1W(MAX)
Operating temperature(-10°C ~+50°C)(-20℃~60℃)
Operating Humidity< 90%RH
Dimensions(MM)35*35mm34*34mm
WeightApprox 130g200g
