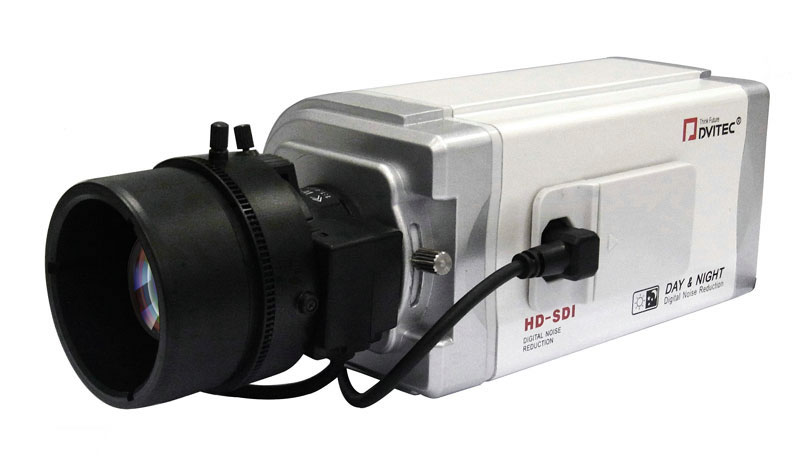

2 Mega Pixel HD SDI Camera

2 Mega Pixel HD SDI Camera

This product has been discontinued and removed from our shelves.

The 2 mega pixel HD SDI camera 1080P offers full HD mega pixel of 1080P with a high definition of at least a million pixels per frame. The resolution ability is over 1,100 TV lines.

The 2 mega pixel HD SDI camera 1080P features WDR function, 3D digital noise reduction, motion detection and digital zoom.

Technical Specifications of the 2 Mega Pixel HD SDI Camera 1080P
Image Sensor 1/3" Panasonic CMOS 2 Mega
Total Pixel 2010(H) x 1108(V) = 2,227,080
Active Pixel 1944(H) x 1092(V) = 2,122,848
Scanning System Progressive
Resolution Digital: 1080(30P), 720(60P) Max: 1,100TV lines(1080P)
Min. Illumination Color: 1.0 lux, BW: 0.5 lux,
Color DSS: 0.002 lux, BW DSS: 0.0008 lux
Video Output Digital: BT.1120, HD-SDI, Analog: NTSC/PAL CVBS (w/o WDR)
S/N Ratio More than 50dB (AGC off)
Function
Lens DC/Manual
AGC 0 – 20 steps
Shutter Speed AUTO/MANUAL (1/50(60) ~ 1/60,000 sec)
Digital Slow Shutter Off/On (x4)
Brightness 0 - 20
WDR/BLC Off/BLC/WDR
ACE Off/On
Day & Night Auto/Color/B&W
White Balance Auto/Autotext/Pushing/Manual
DNR (Digital Noise Reduction) Off/Low/Middle/High
Mirror Off/On
Flip Off/On
Sharpness 0 – 10 steps
Shading Off/On
Digital Zoom 0 – 96 steps
Privacy Mask 32 Masks
Motion Detection Off/On
Language Chinese/English (English only, option)
Electrical
Power (Max.) supply DC12V, Less than 1.5Watts
General
Power Input Connector
Video Output SDI: SMA connector, CVBS: BNC connector
